Tone Structure

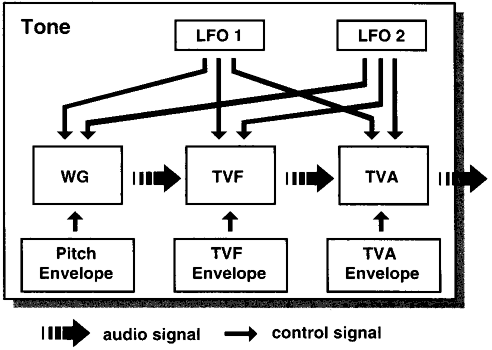

Tone structure graphic
(\XP-80 Owner's Manual, pg. 18. Copyright 1996, Roland Corp.). A Tone is the smallest class of sound in the Super JV synthesizers. This illustration demonstrates the basic structure of a Tone and the relationship between the different components within the Tone.
